OW-SDA submersible agitator slurry pumps for sand, sediment, abrasive slurry, quarry pits, settling ponds and industrial solids transfer.
Find the right model Back to product families
OW-SDA is the dedicated agitator slurry line in the supplied product package, designed to help suspend settled solids at the pump inlet.
Submersible slurry pumps with bottom agitator for sand, sediment and abrasive slurry applications where settled solids need to be suspended.

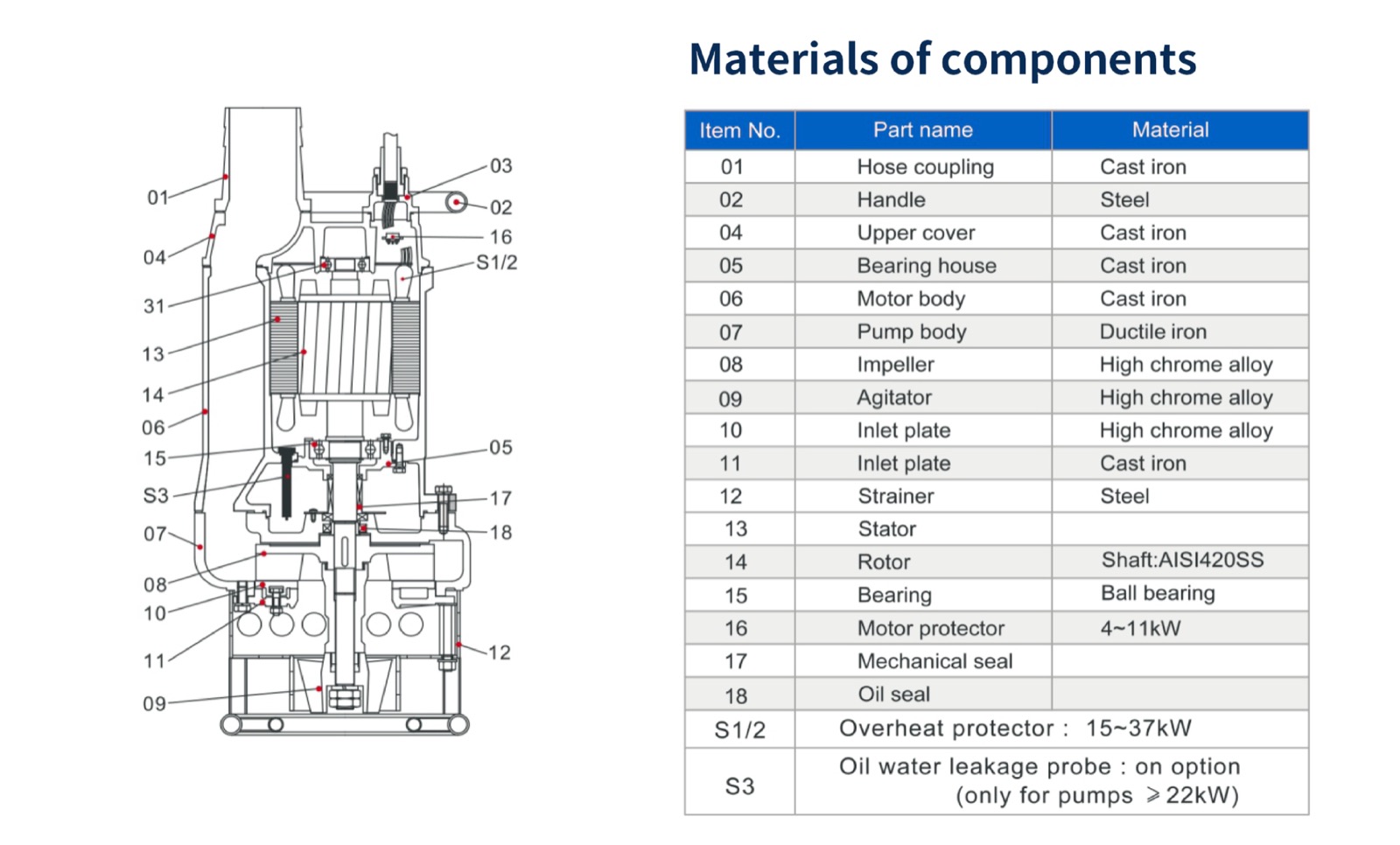

The OW-SDA materials list places high-chrome alloy parts in the main wear areas, supported by a ductile-iron pump body.
Searchable model data helps buyers and technical systems compare agitator slurry pump capacity, head, outlet and motor starting method.
| Model | Outlet (mm) | Power (kW) | Starting method | Rated capacity (m³/h) | Rated head (m) | Max capacity (m³/h) | Max head (m) | Passage (mm) |
|---|---|---|---|---|---|---|---|---|
| 800W-SDA44 | 80 | 4 | D.O.L. | 60 | 10 | 99 | 14.8 | 30 |
| 1000W-SDA46 | 100 | 6 | D.O.L. | 90 | 10 | 144 | 16.9 | 30 |
| 1500W-SDA49 | 150 | 9 | D.O.L. | 100 | 15 | 192 | 21.5 | 30 |
| 1500W-SDA411 | 150 | 11 | D.O.L. | 120 | 15 | 234 | 22 | 30 |
| 2000W-SDA415 | 200 | 15 | D.O.L. | 200 | 16 | 372 | 22 | 30 |
| 2000W-SDA422 | 200 | 22 | Star-Delta | 200 | 24 | 360 | 32 | 30 |
| 2000W-SDA430 | 200 | 30 | Star-Delta | 200 | 28 | 390 | 34 | 30 |
| 2000W-SDA437 | 200 | 37 | Star-Delta | 200 | 32 | 390 | 39 | 30 |
Use these figures for preliminary selection. Confirm slurry concentration, particle size, abrasion, voltage, frequency and final duty point with ONE WHALE before ordering.

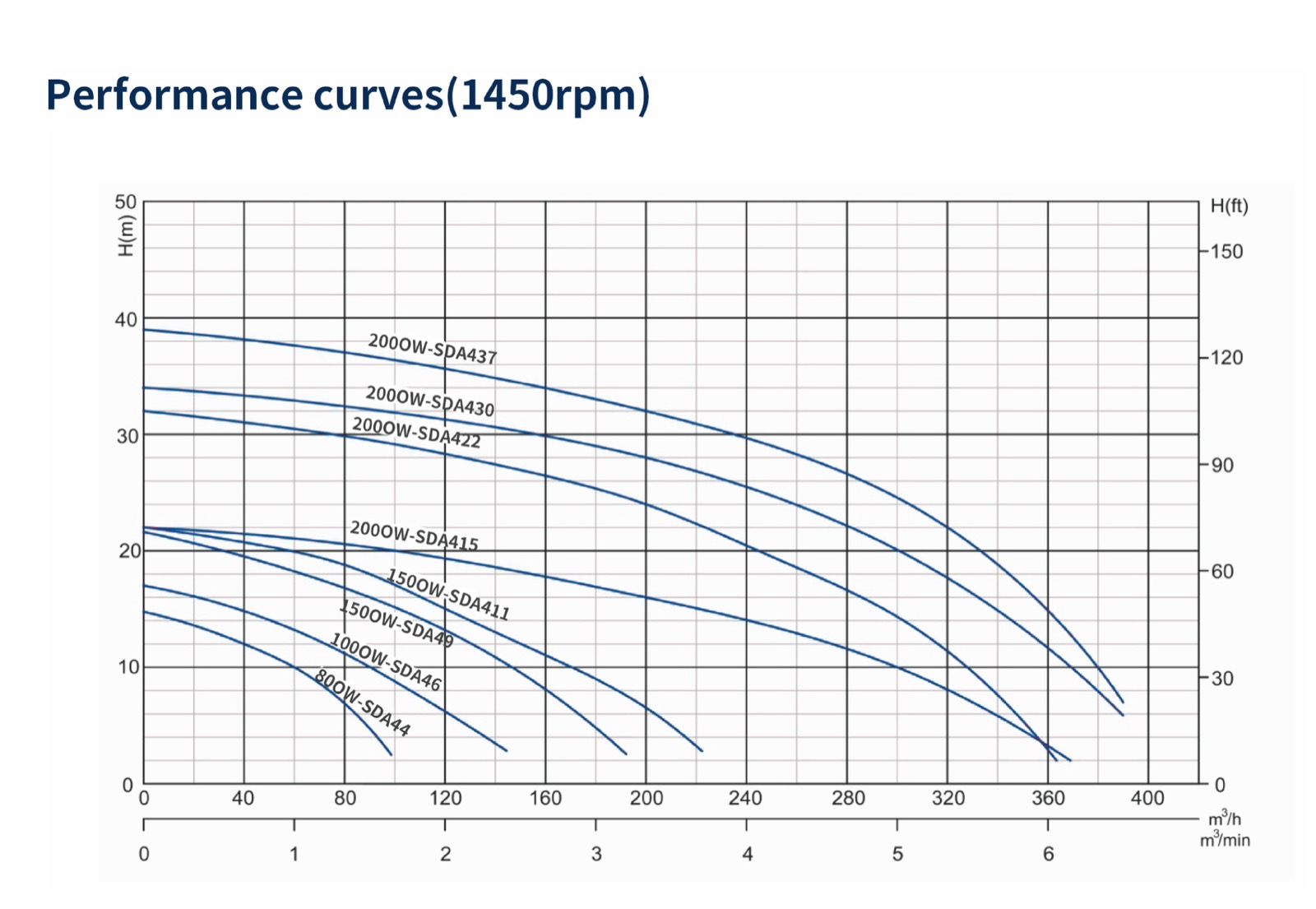

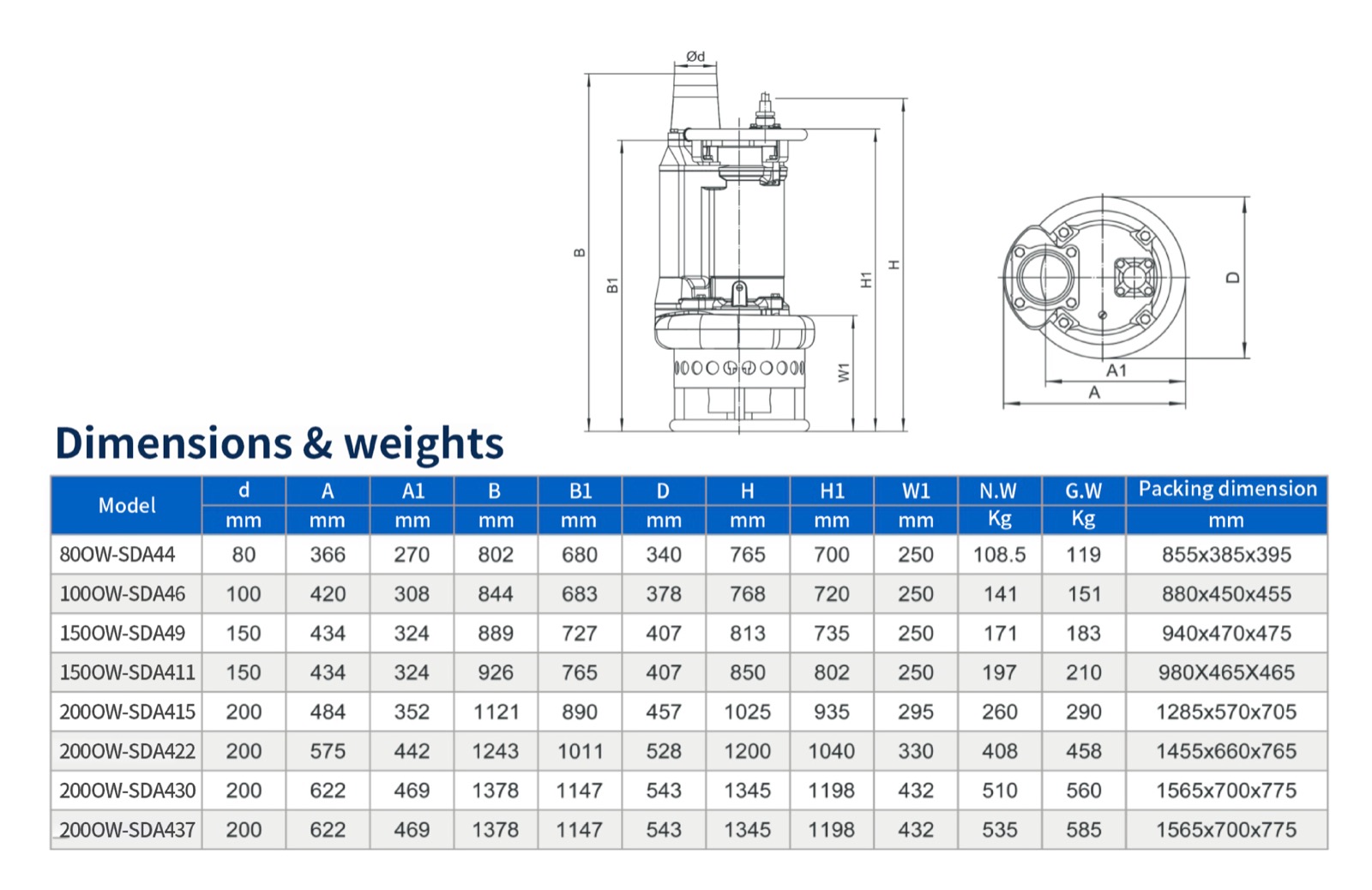

The supplied OW-SDA folder includes performance curves at 1450 rpm, model table, material list and dimension drawings.
Slurry pumps should be selected around solids behavior, abrasion level and the need for agitator-assisted suspension.
| Main applications | Mining, quarry pits, sediment removal, settling ponds, dredging support, abrasive process water and solids transfer |
|---|---|
| Selection focus | Slurry density, particle size, abrasion level, required flow rate, total dynamic head, installation depth, voltage and whether an agitator is required |
| Recommended details to provide | Solid material, particle size distribution, approximate slurry concentration, required discharge distance and expected operating hours |
| Optional support | Wear-part recommendations, motor start method guidance, service kits and selection support for demanding slurry duty |
Send us the flow rate, total head, solids particle size, liquid type and voltage. We will recommend a suitable ONE WHALE pump.
